Plan Your Drip System Perfectly: Calculate Pipe Length, Dripper Count, Discharge & Irrigation Schedule
Water scarcity is one of the most pressing challenges in modern agriculture. With unpredictable rainfall, rising groundwater costs, and increasing crop water demand, farmers around the world are turning to drip irrigation as the most efficient method of delivering water directly to plant roots — where it is needed most.
But setting up a drip irrigation system without proper planning can lead to wasted money, uneven water distribution, and poor crop yields. That is where our Drip Irrigation Layout Calculator comes in — a free, advanced tool designed for farmers, agronomists, and irrigation engineers worldwide.
💧 Drip Irrigation Layout Calculator
An advanced calculator to estimate total pipe length, dripper count, system discharge, water requirement, and irrigation schedule for any drip irrigation system. Supports all units — meters, feet, inches, centimeters, and acres.
Standard spacing, discharge rates, and daily water requirements for common crops:
| Crop | Row Spacing | Dripper Spacing | Dripper LPH | Water Req. (mm/day) | Pressure (Bar) |
|---|---|---|---|---|---|
| Tomato | 1.5 m / 4.9 ft | 0.6 m / 24 in | 2 LPH | 4–6 | 1.0–1.5 |
| Grape | 3.0 m / 9.8 ft | 0.6 m / 24 in | 4 LPH | 5–7 | 1.0–2.0 |
| Banana | 1.8 m / 5.9 ft | 0.9 m / 35 in | 4 LPH | 6–8 | 1.0–1.5 |
| Onion | 0.6 m / 24 in | 0.3 m / 12 in | 1 LPH | 3–5 | 0.8–1.2 |
| Sugarcane | 0.9 m / 35 in | 0.6 m / 24 in | 2 LPH | 5–8 | 1.0–1.5 |
| Pomegranate | 4.5 m / 14.8 ft | 0.9 m / 35 in | 4 LPH | 4–6 | 1.0–2.0 |
| Cotton | 0.9 m / 35 in | 0.45 m / 18 in | 2 LPH | 4–6 | 1.0–1.5 |
| Chili / Capsicum | 0.6 m / 24 in | 0.3 m / 12 in | 1–2 LPH | 4–5 | 0.8–1.2 |
| Strawberry | 0.3 m / 12 in | 0.3 m / 12 in | 1 LPH | 3–4 | 0.8–1.0 |
| Watermelon / Melon | 1.5 m / 4.9 ft | 0.6 m / 24 in | 2 LPH | 5–7 | 1.0–1.5 |
| Potato | 0.6 m / 24 in | 0.3 m / 12 in | 1–2 LPH | 4–6 | 1.0–1.5 |
| Papaya | 2.5 m / 8.2 ft | 2.5 m / 8.2 ft | 8 LPH | 5–7 | 1.0–2.0 |
| Citrus / Lemon | 5.0 m / 16.4 ft | 5.0 m / 16.4 ft | 4–8 LPH | 4–6 | 1.0–2.0 |
| Mango | 8.0 m / 26.2 ft | 8.0 m / 26.2 ft | 8 LPH | 4–5 | 1.5–2.5 |
| Vegetables (General) | 0.6 m / 24 in | 0.3 m / 12 in | 1–2 LPH | 3–5 | 0.8–1.2 |
Pipe Size Guide:
| Pipe Type | Size | Flow Range | Max Length |
|---|---|---|---|
| Main Line (HDPE) | 63–90 mm / 2.5–3.5 in | 5,000+ LPH | Unlimited |
| Sub-Main | 40–63 mm / 1.6–2.5 in | 2,000–5,000 LPH | 200 m / 656 ft |
| Lateral (LLDPE) | 16 mm / 0.6 in | 500–2,000 LPH | 100 m / 328 ft |
| Micro Tube | 4–6 mm / 0.16–0.24 in | 50–200 LPH | 1.5 m / 5 ft |
Unit Conversion Quick Reference:
| To Convert | Multiply By |
|---|---|
| Meters → Feet | × 3.28084 |
| Feet → Meters | × 0.3048 |
| Inches → Cm | × 2.54 |
| Cm → Inches | × 0.3937 |
| Acres → Hectares | × 0.4047 |
| Hectares → Acres | × 2.4711 |
| LPH → GPH | × 0.2642 |
| Bar → PSI | × 14.5038 |
| 1 Guntha | = 101.17 m² |
| 1 Acre | = 4046.86 m² |
What Is Drip Irrigation?
Drip irrigation — also called trickle irrigation or micro-irrigation — is a method of applying water slowly and directly to the root zone of plants through a network of pipes, tubes, valves, and emitters (drippers). Unlike flood or sprinkler irrigation, drip irrigation delivers water at low flow rates (typically 1–8 liters per hour per emitter), minimizing evaporation, runoff, and deep percolation.
First developed in Israel in the 1960s, drip irrigation has now become the preferred irrigation method across the globe — from vineyards in California to sugarcane farms in India, tomato fields in Spain, and cotton farms in Australia.
Key statistics that highlight why drip irrigation matters:
- Drip irrigation can reduce water consumption by 30% to 60% compared to flood irrigation
- Crop yields typically increase by 20% to 50% with well-designed drip systems
- Fertilizer use can be reduced by up to 30% through fertigation (applying fertilizers through the drip system)
- Drip irrigation reduces weed growth by keeping inter-row areas dry
- Labor costs for irrigation can be cut by 50% to 70% using automated timers
What Does This Calculator Help You Compute?
Our advanced drip irrigation calculator covers four essential aspects of drip system planning, each in a dedicated tab:
Tab 1 — Pipe & Layout Calculator
This is the foundation of any drip system design. Before purchasing materials, you need to know exactly how many meters (or feet) of pipe are required and how many drippers to order. The Pipe & Layout tab calculates:
- Total field area — displayed in your preferred unit (m², ft², acres, hectares, or guntha)
- Number of lateral rows — based on your row spacing
- Total lateral pipe length — the sum of all the thin 16mm pipes that carry drippers
- Total main pipe length — the primary supply pipe running along the field
- Total pipe required — combined main and lateral pipe in meters, feet, or yards
- Drippers per row and total dripper count — so you can order the exact quantity needed
Tab 2 — Discharge & Flow Calculator
Once you know your dripper count, the next step is calculating how much water your system will deliver per hour and whether your pump can handle it. This tab calculates:
- Total system discharge — the combined flow of all drippers operating simultaneously
- Per-zone discharge — if your field is divided into multiple irrigation zones
- Flow in all units simultaneously — LPH, LPM, LPS, GPH, GPM, and m³/hour displayed together
- Pressure status check — tells you whether your operating pressure is too low, optimal, or dangerously high
Tab 3 — Water Requirement & Irrigation Schedule
Knowing how much water your crop needs daily — and how long to run the pump — is crucial for efficient irrigation management. This tab calculates:
- Daily water requirement in liters and cubic meters
- System output accounting for dripper LPH, total drippers, and system efficiency
- Required irrigation time per day in hours and minutes
- Session time if you irrigate fewer than 7 days per week
- Weekly and monthly water consumption for cost planning and water budgeting
Tab 4 — Crop Reference Table
A comprehensive reference table with standard row spacing, dripper spacing, discharge rates, daily water requirements, and operating pressure ranges for 15 major crops — from tomatoes and grapes to mango and strawberry.
How to Use the Drip Irrigation Calculator — Step by Step
Step 1: Enter Field Dimensions (Tab 1)
Measure your field length and width. Each dimension has its own unit selector — you can enter length in feet and width in meters if that is how you measured them. The calculator automatically converts everything.
Select your crop from the dropdown to auto-fill standard row spacing and dripper spacing values. You can also enter custom values if your crop is not listed or if you are following a different agronomic recommendation.
Step 2: Set Spacing and System Parameters
Enter the row spacing (distance between lateral pipes) and dripper spacing (distance between emitters on each lateral). Choose how many main lines you need and select your preferred output unit for pipe length results.
Step 3: Calculate and Review Pipe Requirements

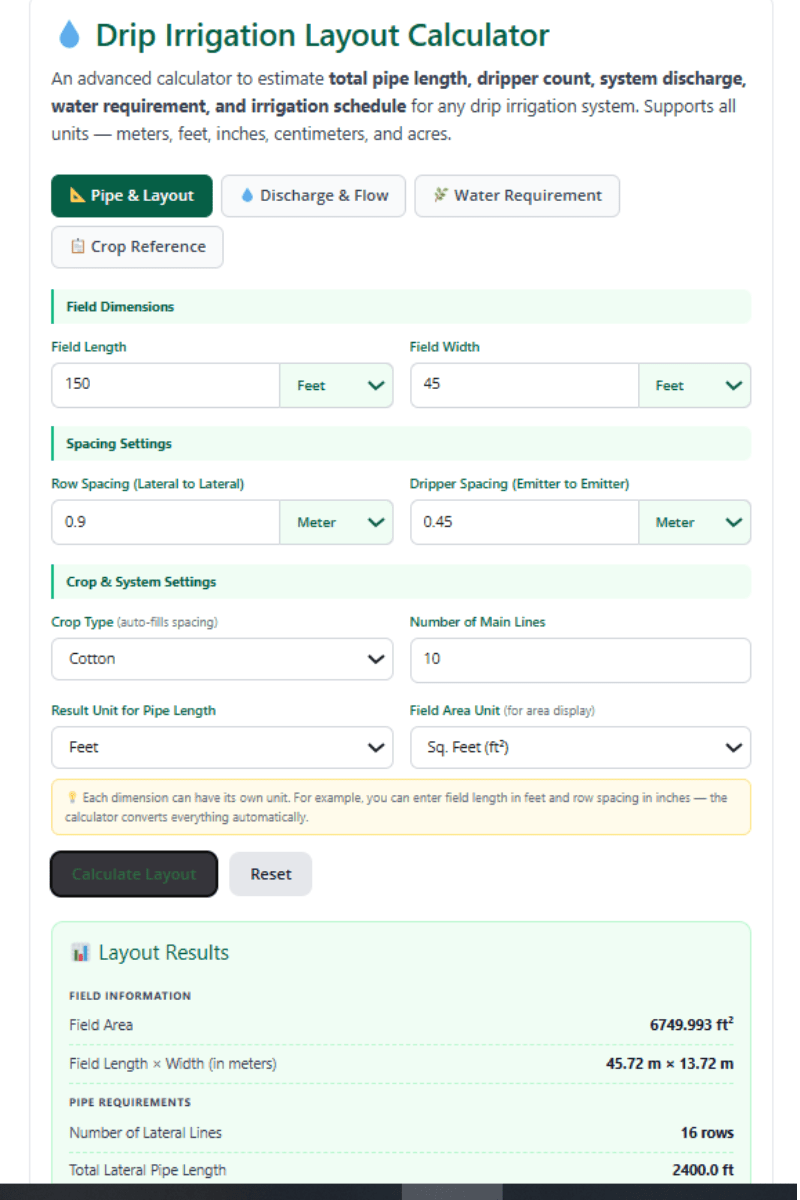

Click Calculate Layout to instantly see the number of lateral rows, total lateral pipe length, main pipe length, total pipe required, and total dripper count. These numbers are what you will use to prepare your materials list and cost estimate.
Step 4: Check System Discharge (Tab 2)
Switch to the Discharge & Flow tab. Select your dripper type (or enter a custom LPH value), enter the total number of drippers, and input your operating pressure. The calculator shows your total system flow in all units simultaneously and checks whether your pressure is within the safe operating range.
Step 5: Plan Your Irrigation Schedule (Tab 3)
Enter your field area, daily crop water requirement, dripper count, and LPH. Select how many days per week you plan to irrigate. The calculator will tell you exactly how long to run your pump each day — and give you weekly and monthly water consumption figures.
Understanding Drip System Components
A well-designed drip irrigation system consists of several interconnected components. Understanding each component helps you make better purchasing and installation decisions.
Pump and Power Unit: The pump creates the pressure needed to push water through the entire system. Centrifugal pumps are most common for drip systems. The required pump HP depends on total discharge (LPH), operating pressure (Bar), and total head (elevation + friction losses). See our separate Pump Power (HP) Calculator for accurate pump sizing.
Filtration System: The single most important component for drip system longevity. Drippers have very small openings (typically 0.5–1.5mm) that clog easily with sand, silt, algae, or mineral deposits. A properly sized filter system is non-negotiable.
- Sand Media Filter: For open water sources (canals, rivers, ponds) with heavy suspended particles
- Screen Filter: For borewell or municipal water with light suspended solids
- Disc Filter: Versatile option that handles both organic and inorganic particles
- Combination Systems: Most large installations use sand filter + screen filter in series
Main Line Pipe (HDPE): The primary supply pipe running from the pump to the field. Typically 63mm or 90mm HDPE pipe buried underground for protection. Larger fields may require 110mm or larger.
Sub-Main Pipe: Distributes water from the main line to groups of laterals. Typically 40–63mm HDPE, with a maximum recommended length of 200 meters to avoid excessive pressure drop.
Lateral Pipe (LLDPE): The 16mm flexible poly pipe on which drippers are installed. Maximum recommended length is 100 meters. Beyond this length, pressure variation along the lateral becomes too large for uniform water distribution.
Drippers / Emitters: The heart of the system. Available in 1, 2, 3.5, 4, and 8 LPH discharge rates. Pressure-compensating drippers maintain uniform output even when pressure varies, making them ideal for sloped fields or long laterals.
Flushing Valves and Air Relief Valves: Installed at the ends of laterals for periodic flushing and at high points to release trapped air that causes pressure fluctuations.
Drip Irrigation for Different Crops: What You Need to Know
Different crops have fundamentally different water needs, canopy structures, and root systems — which means drip system design varies significantly from one crop to another.
Row Crops (Tomato, Onion, Potato, Chili)
Row crops are typically planted in close rows with individual plants spaced 30–60 cm apart. For these crops, a single lateral line runs between two rows, with drippers spaced 30–60 cm apart. Discharge rates of 1–2 LPH are standard. The key challenge is uniformity — all drippers must receive equal water, which requires careful pressure management.
Orchards and Tree Crops (Mango, Citrus, Pomegranate, Grape)
Tree crops have wide spacing — typically 3 to 8 meters between trees in both directions. Each tree typically has 2–4 drippers arranged around the base. Higher discharge rates (4–8 LPH per dripper) are used to meet the larger water demand per plant. The main design challenge is delivering enough water to each tree without waterlogging the soil.
Vine Crops (Grape, Cucumber, Bitter Gourd)
Vines are typically trained on trellises with rows 2–3 meters apart. A single lateral runs along the trellis wire with drippers placed at each plant. Fertigation is especially important for vine crops to deliver precise nutrient doses at each growth stage.
Greenhouse and Protected Cultivation
Drip irrigation is nearly universal in greenhouses. Precise water and nutrient delivery through fertigation allows extremely high yields per square meter. Substrate growing (in coir, rockwool, or perlite) requires multiple dripper points per plant and very frequent short irrigation cycles.
Calculating Pipe Lengths: The Math Behind the Tool
For those who want to understand the calculations:
Field Area: Area (m²) = Field Length (m) × Field Width (m)
Number of Lateral Rows: Lateral Rows = CEIL (Field Width ÷ Row Spacing)
Total Lateral Pipe Length: Lateral Length (m) = Number of Lateral Rows × Field Length
Total Main Pipe Length: Main Pipe Length (m) = Field Length × Number of Main Lines
Total Drippers: Drippers per Row = CEIL (Field Length ÷ Dripper Spacing) Total Drippers = Drippers per Row × Number of Lateral Rows
Total System Discharge: Total LPH = Dripper LPH × Total Number of Drippers
Required Irrigation Time: Time (hrs) = Daily Water Requirement (L) ÷ (System LPH × Efficiency)
Unit Conversions: A Global Tool for Every Farmer
One of the most important features of this calculator is its support for multiple measurement units — making it genuinely useful for farmers in every country.
Farmers in the United States typically measure field dimensions in feet and acres, while farmers in India use meters, acres, and guntha. European farmers use meters and hectares. Our calculator accepts each measurement in its own unit, so you never need to manually convert before entering data.
Supported length units: Meters, Feet, Centimeters, Inches, Yards
Supported area units: Square Meters (m²), Square Feet (ft²), Acres, Hectares, Guntha
Supported pressure units: Bar, PSI (pounds per square inch), kPa (kilopascals), m WC (meters water column)
Supported flow units: LPH (Liters per Hour), LPM (Liters per Minute), LPS (Liters per Second), GPH (Gallons per Hour), GPM (Gallons per Minute), m³/hour
Common Drip Irrigation Design Mistakes and How to Avoid Them
Even experienced farmers sometimes make errors when designing or installing drip systems. Here are the most common mistakes and how this calculator helps you avoid them.
Mistake 1 — Not calculating total drippers before purchase: Many farmers estimate dripper count roughly and end up buying too many or too few. Use the Pipe & Layout tab to get the exact number before purchasing.
Mistake 2 — Ignoring pressure drop along laterals: The further water travels along a lateral pipe, the lower the pressure — and the less water each dripper delivers. Keep lateral length under 100 meters. For longer fields, use a central main line with laterals running in both directions.
Mistake 3 — Undersizing the filter: A filter that is too small for your flow rate will clog frequently and restrict water supply. Always size the filter for at least 120% of your total system discharge.
Mistake 4 — Running the pump too long without checking actual soil moisture: Calculator output gives you a theoretical irrigation time. Always calibrate against actual soil moisture readings using a tensiometer or capacitance sensor.
Mistake 5 — Not accounting for system efficiency: A new system may operate at 90% efficiency, but over time, partial clogging and wear can reduce this to 75–80%. Our calculator includes an efficiency factor so your irrigation time accounts for this real-world reduction.
Mistake 6 — Skipping fertigation planning: If you plan to use fertigation, the venturi injector or fertilizer tank needs to be sized and positioned correctly in the system. Plan this during the design phase, not after installation.
Drip Irrigation Subsidy Programs Around the World
Many governments actively support drip irrigation adoption through financial assistance programs.
India: Under the Pradhan Mantri Krishi Sinchayee Yojana (PMKSY) — Har Khet Ko Pani scheme, farmers receive 55% to 80% subsidy on drip irrigation installation costs depending on land holding size and state. Applications are made through the MahaDbt portal (Maharashtra) or state agriculture department portals.
United States: The USDA Natural Resources Conservation Service (NRCS) offers financial assistance through the Environmental Quality Incentives Program (EQIP) for irrigation efficiency improvements including drip systems.
Israel: The government and agricultural organizations provide technical support, research, and subsidized equipment for drip irrigation, which covers nearly all irrigated agriculture in the country.
South Africa: The Department of Agriculture, Land Reform and Rural Development supports smallholder irrigation schemes including drip system installation for emerging farmers.
Australia: State water authorities provide rebates and technical support for on-farm water use efficiency improvements including drip conversion from flood irrigation.
Check with your local agriculture department or ministry for the specific programs available in your region.
Frequently Asked Questions (FAQ)
Q. What is the difference between LPH and LPM in drip irrigation? LPH stands for Liters Per Hour — the standard unit for measuring dripper discharge rate. LPM stands for Liters Per Minute — commonly used for pump flow rates. To convert LPH to LPM, divide by 60. Our calculator shows both values simultaneously so you can match your dripper requirements to your pump specifications.
Q. How do I know if my water pressure is correct for drip irrigation? Most standard drip emitters are designed to operate between 1.0 and 2.5 Bar (14.5–36 PSI). Pressure below 0.8 Bar results in uneven discharge, while pressure above 3.5 Bar can damage lateral pipes and cause emitter blow-outs. Use a pressure gauge at the head of the system and at the far end of the longest lateral to check uniformity.
Q. Can I use this calculator for a greenhouse or polyhouse? Yes. Enter the greenhouse dimensions as the field dimensions. For substrate growing with multiple drippers per plant, calculate total drippers based on plants per row and drippers per plant, then use the Discharge tab to find the total flow.
Q. What is Coefficient of Uniformity (CU) in drip systems? CU measures how evenly water is distributed across all emitters in the system. A well-designed system should have a CU of 90% or above. CU is affected by pressure variation, emitter manufacturing tolerance, and clogging. Pressure-compensating drippers maintain higher CU on sloped fields.
Q. How often should I flush my lateral pipes? Lateral pipes should be flushed at the start of the season, at regular monthly intervals during the growing season, and whenever you suspect partial clogging. Open the end caps of each lateral and let water flow freely for 2–3 minutes to flush out accumulated sediment.
Q. What is fertigation and how does it work in drip systems? Fertigation is the application of water-soluble fertilizers through the drip irrigation system. A venturi injector or pressurized fertilizer tank is connected to the main line. As water flows through, it draws fertilizer solution and distributes it uniformly to all plants through the drippers. Fertigation reduces fertilizer use by 20–30% and improves nutrient uptake efficiency significantly.
Q. How long does a drip irrigation system last? With proper maintenance, HDPE main and sub-main pipes last 20–25 years. Lateral pipes (LLDPE) typically last 5–8 years. Drippers last 3–7 years depending on water quality and maintenance. Annual flushing, winterization in cold climates, and UV protection for exposed pipes significantly extend system life.
Q. Is drip irrigation suitable for all soil types? Yes, but the irrigation frequency and duration may differ. Sandy soils drain quickly and require shorter, more frequent irrigation cycles. Clay soils retain water longer and require longer, less frequent irrigation. Loamy soils are ideal for drip irrigation with standard scheduling.
Conclusion
A well-designed drip irrigation system is one of the most valuable investments a farmer can make — delivering more crop per drop while reducing labor, fertilizer, and water costs. But the difference between a successful installation and a frustrating one lies in accurate planning before the first pipe is laid.
Our Drip Irrigation Layout Calculator gives you the complete planning toolkit — pipe lengths, dripper counts, discharge rates, pressure checks, water requirements, and irrigation schedules — all in a single tool that works with any unit of measurement used anywhere in the world.
Use it before you visit your supplier, before you apply for a subsidy, and before you begin installation. Share it with your fellow farmers, irrigation technicians, and agricultural extension officers who can benefit from accurate, instant drip system calculations.
💧 Plan smart. Irrigate efficiently. Grow more.
References: FAO Irrigation and Drainage Paper No. 36 | ASABE Standards for Micro-Irrigation | Netafim Agronomic Guidelines | USDA NRCS Irrigation Guide
This calculator is for planning and educational purposes. For complex installations on large fields or sloped terrain, always engage a certified irrigation design engineer.
